Options

The Neyk control system incorporates the most modern forms of data processing and displays in its command centre.



The heart of the system is a central, powerful computer, which processes data received from external sensors, navigation aids and the data bank, and displays them in a convenient, clear way on four (27in 700mm) high-resolution monitors. It is also possible for the operator to select simultaneously a number of images, such as the TV camera, the radar scan and the electronic sea chart.

0026 (5000x3529).jpg

<<


The basis Neyk design can be modified leading to a wide range of variations including diverlockout



For lock out operations, the submarine can be made up to 4000kg negative by using the regular

ballast system and partly flooding the lockout trunk. The full power up to 10 kW of the main

hydraulic system otherwise used for propulsion is available as a tool for divers'.

Power Generation and Propulsion

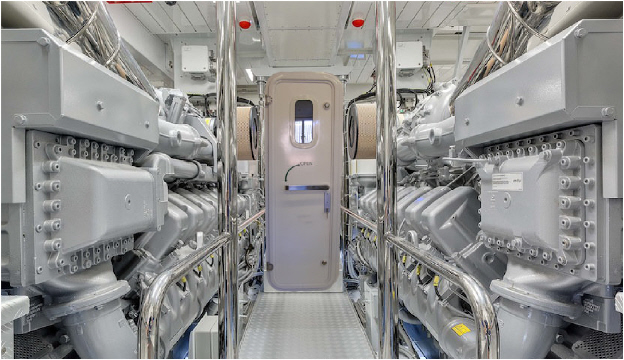

Power is derived from one diesel generator: MTU Generator. Should a future customer prefer another type or make of diesel or generator, then this can be discussed.

However, the Rolls-Royce option  should not be taken lightly. Not only is this manufacturer well-acquainted with warship power generation in general, but has done a lot of research on the influence of varying pressure at the intake and exhaust levels of diesel engines for snorkelling applications. This has led to the development of a special submarine turbocharger, consisting of a radial exhaust gas turbine and radial compressor.

0026 (5000x3529).jpg
0026 (5000x3529).jpg

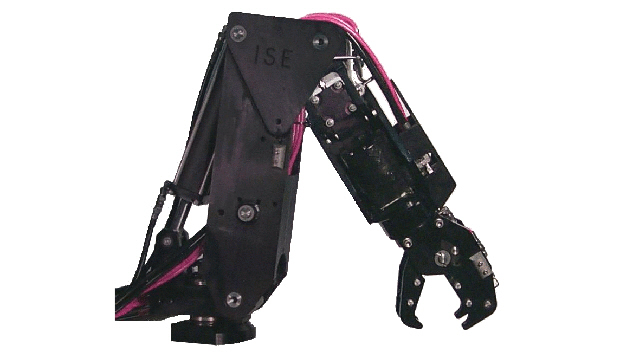

The Neyk 6-function manipulator used primarily in ROV applications. This manipulator is designed to be reliable while operating in harsh environments. Components and assembly make this arm completely field serviceable.

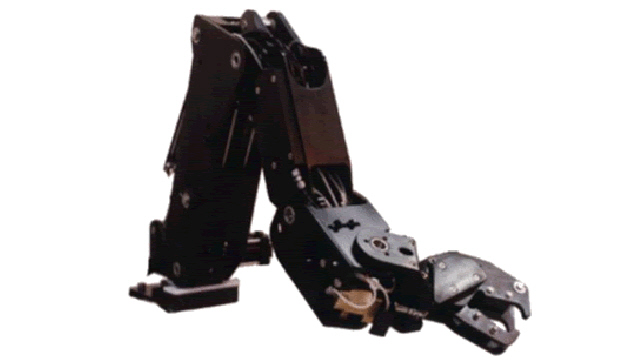

The Neyk 7-function manipulator used primarily in ROV applications. This manipulator is designed to be reliable while operating in harsh environments. Components and assembly make this arm completely field serviceable.





0026 (5000x3529).jpg

The Neyk Custom Built

From disposal (UXO) to salvage and recovery, ISE has designed 3, 4, 5, 6, and 7 function master/slave and force reflecting manipulators.

0026 (5000x3529).jpg
0026 (5000x3529).jpg

NATO compatible lightweight torpedoes



 offer a rapid launch of a range of weapon types, available in multiple launch configurations  for  different platforms.

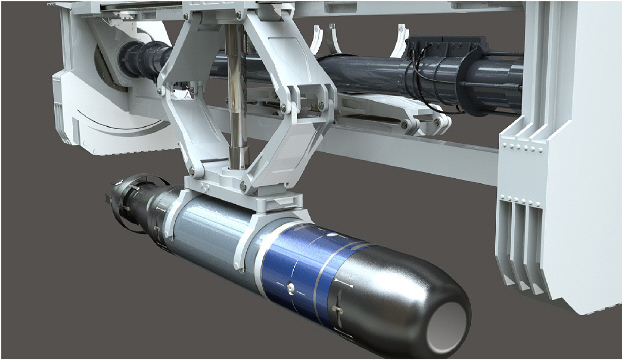

The Neyk Lightweight Torpedo Launcher is capable of deploying NATO compatible lightweight torpedoes and can be easily configured to launch the US Mk 44, Mk 46 and Mk 54 torpedoes (subject to consent), plus UK Sting Ray and Italian A244S.

It comes with an electronics suite of varying complexity depending on configuration and operational requirement.





The Neyk Cylindrical Array Sonar provides a panoramic view of the sur-rounding contacts and is usually the primary sensor of a sub-merged submarine. It is available as CAS with a fixed vertical beam and as ECAS with extended acoustical aperture in height, vertical beam steering and increased acoustical performance. Both CAS and ECAS are available in optimum cylindrical shape and in customer specific array shapes.

0026 (5000x3529).jpg

The Neyk submarine has also been developed with extra fuel tanks or extra battery compartment, underneath the submarine, which were tested in a high-speed towing tank, to develop a resistance as low as possible.





0026 (5000x3529).jpg
0026 (5000x3529).jpg

The upper deck of the submarine is equipped with two large hatches, which are located 6 large presure cylinders.

Each cylinder has two anti-missiles and / or mines. The two large hatches can be opened on the surface, creating a deck that is twice as large.

Because the deck is fully opened, the missile launch systems can be reloaded.





The NEYK can be equipped with various weapon systems. Most likely the Navy version of our NEYK will be fitted with four launching tubes for either all types of torpedo’s or mines and missiles. Besides that, it can also be rigged with various kind of defending weaponry.
