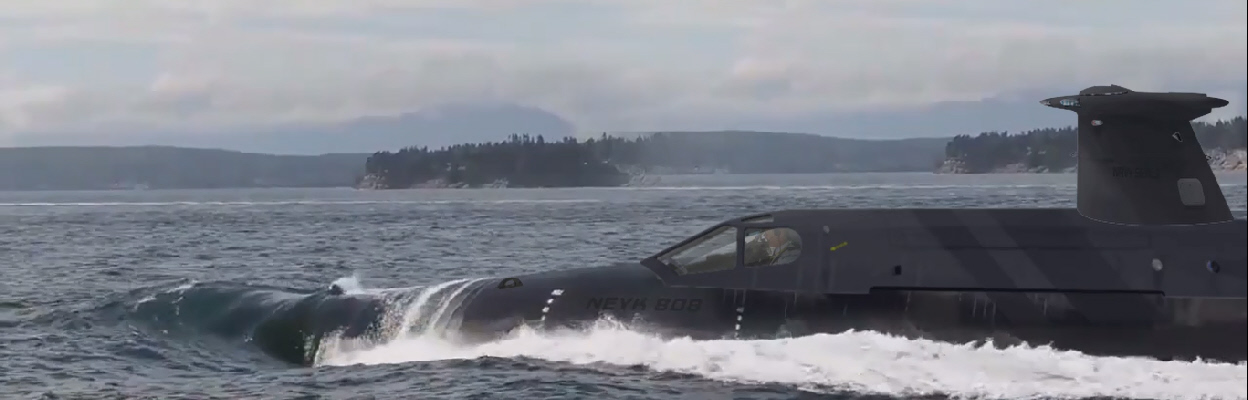

Navy Submarine

Close Details ►

Principal particulars

Length, overall

Width, overall

Height

HuIl diameter

Entrance diameter

Displacement surfaced

Displacement submerged

Operational depth

Propulsion diesel engine

Propulsion two electric motors

Speed surfaced

Speed submerged



Dimensions for transportation

Length, overall

Width, overall

Height

Payload

Crew

Complement

Hydraulic power output

Max. hydr. pressure







21.660M (71,6ft)

7.000M (23ft)

6.195M (20ft)

3.000M 10ft)

0.600M (2ft)

116.450 Tons

128.850 Tons

150M (1000ft)

250kw

2x100kw

10 kn (approx.)

12 kn (approx.)





21,660M (71ft)

4.680M 15ft)

3.700M (12ft)

5-8 tons (approx.)

2 Pilot

7 Min

15 kw

200 Bar





Torpedo tubes

The two launching-tubes can be freely se­lected from what is available on the mar­ket, from stan­dard to highly sophistica­ted types. All available types of wea­pons can be launched: torpedo's, mines and missi­les.

Combat system

The "NEYK" combat system incorporates the most modern forms of data processing and dis­plays in the command cen­tre.

The choice of combat system and the range of sen­sors - passive, active, ranging and intercept - ho­wever, depends of the custo­mer's require­ments, and will determine the ultimate, exact displacement of the subma­rine.

Special equipment (optional):

Cilindrical array sonar, Echo sounder, In­tercept so­nar, Active sonar, Self noise indicators, Navigation sy­stem, Underwater telephone, Radar system, Underwater TV systems, Night vision equip­ment.
